High Elasticity Marine Donut Fender For Protection And Guidance
High Elasticity Marine Donut Fender For Protection And Guidance
| Categories | Donut Fender |
|---|---|
| Album | View larger image |
| Brand | Jerryborg Marine，safe docking，safe mooring |
| Model | JRBMA-01 |
| material | eva,polyurethane |
| brand name | Jerryborg |
| application | protect and guide ships |
| color | red, orange, black, etc |
| size | customized size |
| certificate | BV, CCS, ABS |
| warranty | 12 months |
| Update Time | 2021-04-11 |
Detail Information
High Elasticity Marine Donut Fender For Protection And Guidance
Donut Fender

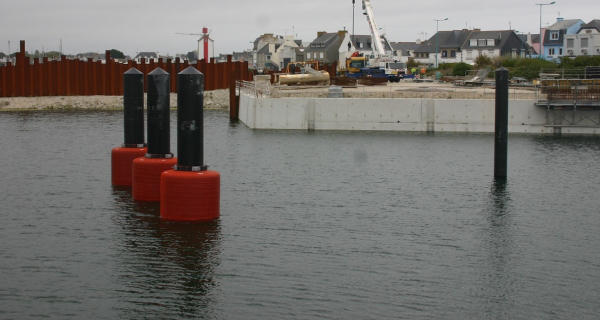

Donut fender is suitable for the places like lock entrances, turning
structures, approach channels and breasting dolphins. It's often installed
the surface of the quay wall and it can rise and fall with the tide. Apart from
the feature of tide adaptation, Jerryborg donut fender can also rotate
around the pile helping guiding vessels due to its low friction.
Donut fender shares the same high-quality raw material and similar
structure with foam filled fender, and it's unsinkable, easy to replace and
maintain. Jerryborg can offer various donut fenders in different sizes and
colors upon customer's request.
don't need to ballast or trim the fenders cause they'll float at the level that is already designed. The last step is to place the capping part over the top of
the fender pile. Jerryborg offers the donut fenders with various sizes and colors with a long lifespan, besides they're cost-effective and easy to maintain.
Donut Fender Application
1. Submarine jetty
2. Locks and dry dock entrances
3. Turning dolphins
4. Corner protection
5. The places where tides vary largely
6. Bridge protection
1. Low shear force
2. Easy installation and maintenance
3. Cost-effective with a long lifespan
4. Tide adaptation
5. Adjustable drafts with the counterweights
|
|
|
standard capacity (at 60% deflection）
|
||
|
energy absorption (kNm)
|
reaction force (kN)
|
|||
|
500
|
1000 |
3000
|
14.7
|
224.6
|
600 | 1200 | 2000 | 13.7 | 179.5 |
600 | 1200 | 3000 | 21.5 | 269.6 |
900 | 1800 | 1000 | 15.7 | 135.3 |
900 | 1800 | 2000 | 32.3 | 269.7 |
900 | 1800 | 3000 | 48 | 405.1 |
1250 | 2500 | 2000 | 61.8 | 374.7 |
1250 | 2500 | 3000 | 92.2 | 562.1 |
1250 | 2500 | 4000 | 123.6 | 750.4 |
1500 | 3000 | 2000 | 89.2 | 450.2 |
1500 | 3000 | 3000 | 133.4 | 674.9 |
1500 | 3000 | 4000 | 177.5 | 899.7 |
2000 | 4000 | 2000 | 157.9 | 600.3 |
2000 | 4000 | 3000 | 236.4 | 899.5 |
2000 | 4000 | 4000 | 315.8 | 1199.7 |
