Marine Solid Rubber Bumper D Type Fender For Ship Protection
Marine Solid Rubber Bumper D Type Fender For Ship Protection
| Categories | D Type Rubber Fender |
|---|---|
| Album | View larger image |
| Brand | Jerryborg Marine，safe docking，safe mooring |
| Model | JRBMA-01 |
| material | natural rubber |
| brand name | Jerryborg |
| color | black |
| application | protect vessels and docks |
| material | natural rubber |
| feature | high energy absorption |
| port | Qingdao,China |
| Update Time | 2021-02-28 |
Detail Information
Marine Solid Rubber Bumper D Type Fender For Ship Protection
D type fender

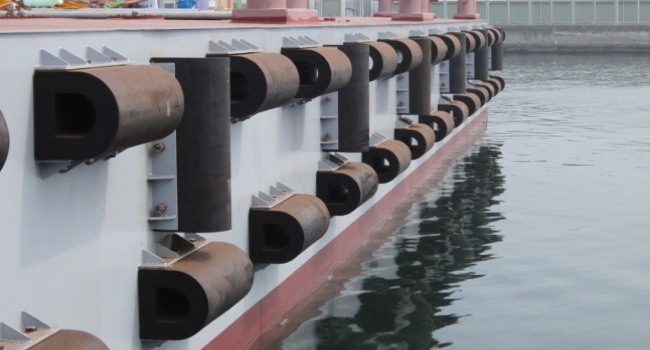

D type fender is manufactured by extrusion, and there are a wide range of dimensions and designs. D type fender with flat back makes it easy for installation on various surface and provide better protection for ships and wharf. Our D type fenders are able to be installed horizontally, vertically or diagonally.
1. D Type fender can be supplied in long lengths with angle cut at the ends, with drilled holes as required for each application
2. Simple installation method
3. Small in size
4. Applicable for small quays, fishing boats, tugs, barges and pontoons.

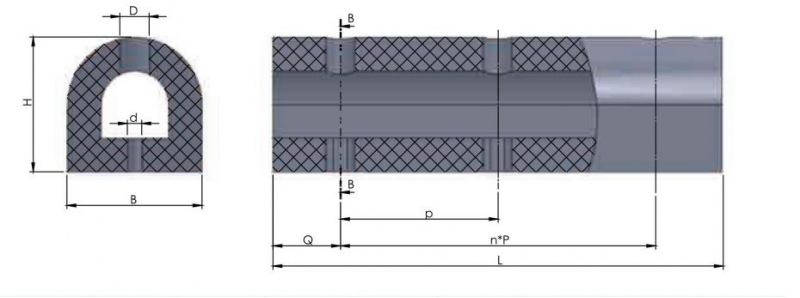

D Type Fender Structure
D Type Fender Specification
|
Item
|
DD100
|
DD150
|
DD200
|
DD250 | DD300 | DD350 | DD400 | DD500 |
|
H
|
100
|
150
|
200
|
250 | 300 | 350 | 400 | 500 |
|
B
|
100
|
150
|
200
|
250 | 300 | 350 | 400 | 500 |
D(Φ) | 45 | 55 | 55 | 65 | 65 | 85 | 85 | 97 |
|
d
|
25
|
27
|
30
|
32 | 36 | 40 | 42 | 45 |
Bolt Size | M22 | M24 | M26 | M27 | M30 | M36 | M38 | M42 |
Q | 100-150 | 100-150 | 100-150 | 100-150 | 100-150 | 100-150 | 100-150 | 100-150 |
P | 350-440 | 350-440 | 325-600 | 325-450 | 325-600 | 325-600 | 350-600 | 400-620 |
Reaction Force (KN/m) | 77 | 115 | 153 | 191 | 230 | 268 | 306 | 383 |
Energy Absorption(KN-M/m) | 1.4 | 3.2 | 5.7 | 8.9 | 12.9 | 17.6 | 23.0 | 35.9 |
Deflection | 50% | |||||||
Reference Weight (kg/m) | 10 | 22 | 38 | 59 | 84 | 115 | 150 | 234 |
unit: mm
Who is Jerryborg Marine?
The Jerryborg Marine is a leading international marine products manufacturer & distributor with15+ years of rich experience in production of marine fender systems & mooring systems.
