Marine Offshore HHP MK5 Anchor with Certificate

Marine Offshore HHP MK5 Anchor with Certificate

Marine Offshore HHP MK5 Anchor with Certificate
Marine Offshore HHP MK5 Anchor with CertificateMarine Offshore HHP MK5 Anchor with CertificateMarine Offshore HHP MK5 Anchor with CertificateMarine Offshore HHP MK5 Anchor with Certificate
CategoriesAnchor Chain
AlbumView larger image
BrandJerryborg Marine,safe docking,safe mooring
ModelJRBMA-01
brand nameJerryborg
place of originQingdao, China
product nameHHP MK5 Anchor
materialhigh tensile steel plate
sizecustomized
certificateABS,CCS,,BV,LR
portQingdao port
Update Time2021-02-28
Detail Information
Marine Offshore HHP MK5 Anchor with Certificate

HHP MK5 Anchor

HHP MK5 Anchor is composed of high tensile steel plate with its weight ranging from 300kg to 30000kg. HHP MK5 anchor has many versions, such as Stevpris version and Stevshark versions. It's suitable for the places such as limestone, calcarenite, sand and coral with high dense because of its great performance. Compared with the versions before, it's designed to be a stronger construction, like the shark teeth, sharp fluke edges and fluke tips. Jerryborg can offer the anchor versions upon customer's request.

HHP MK5 Anchor Advantages

1. Welding rodless

2. Various colors are available

3. Suitable for offshore and hard soils

4. High holding power

5. Easier initial penetration with hollow fluke

6. Easy to install and retrieve

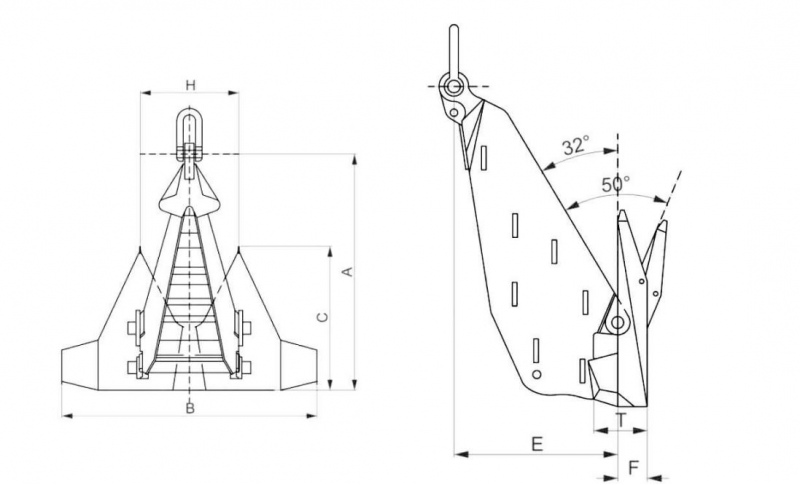

HHP MK5 Anchor Drawing & Structure


HHP MK5 Anchor Specification

Nominal weight (kg)

A

B

C

E

F

H

T

300

1828

1968

1101

927

160

757

230

500

2040

2197

1233

1035

179

845

360

1000

2580

2780

1582

1314

236

1074

430

1500

2945

3184

1812

1505

271

1230

493

3000

3721

4011

2283

1896

342

1550

622

5000

4412

4756

2707

2248

406

1837

738

7000

4910

5290

3011

2500

453

2045

825

8000

5161

5563

3166

2629

474

2149

862

10000

5559

5592

3410

2832

511

2315

929

12000

5908

6368

3624

3010

543

2460

988

14000

6219

6704

3815

3169

572

2590

1040

15000

6364

6860

3904

3242

585

2650

1064

18000

6763

7290

4149

3446

622

2816

1131

20000

7004

7550

4297

3569

644

2917

1171

22000

7230

7794

4436

3684

665

3011

1209

25000

7545

8133

4629

3844

694

3142

1262

30000

8018

8645

4919

4085

737

3339

1341

unit:mm
