Hot Sale Dock Marine Rubber Fender Roller Rubber Fender Wheel Fender
Hot Sale Dock Marine Rubber Fender Roller Rubber Fender Wheel Fender
| Categories | Roller Rubber Fender |
|---|---|
| Album | View larger image |
| Brand | Jerryborg Marine，safe docking，safe mooring |
| Model | JRBMA-01 |
| material | natural rubber |
| color | black |
| place of origin | Qingdao,China |
| brand name | Jerryborg |
| size | cutomized |
| usage | dock and vessl protection |
| certificate | BV/CCS/TUV/ISO/LR |
| MOQ | 1 pcs |
| Update Time | 2021-01-18 |
Detail Information
Hot Sale Dock Marine Rubber Fender Roller Rubber Fender Wheel Fender
Roller rubber fender is commonly used on the berth corners and dock entrances as a bumper to guide boats and protect boat hull from the damage. These roller rubber fenders could be installed side-by-side to guide the boats or mounted at an angle for the large hull angles. With the wheels fixed to the metal frame, the roller rubber fenders can rotate along with the berthing boats to offset the impact force. Therefore, it could better control the speed of berthing to protect the hull from damage. The berthing angles have nothing impact on ships due to the excellent combination of great energy absorption and low reaction force.
1. Roller Rubber Fender absorbs the impact energy of boat through rolling and deflection.
2. Roller Fender usually is used in shipyard, water lock, all kinds of limited canal and corner of docks etc.
3. Low rolling resistance.
4. Can be used singly or in stacks.
5. Low maintenance frame design.
6. Large load bearing capacity.
7. Suitable for dry docks and other restricted access.

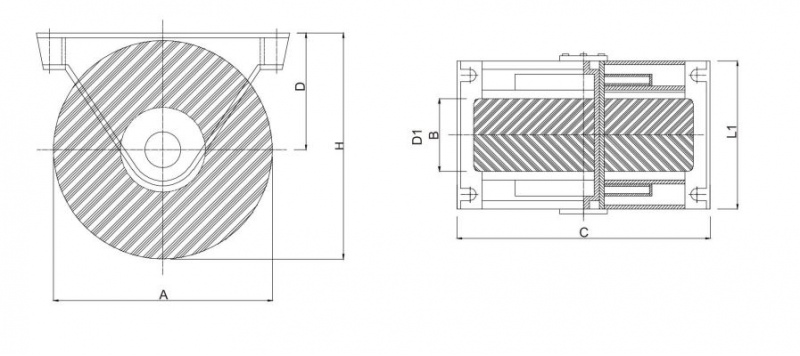

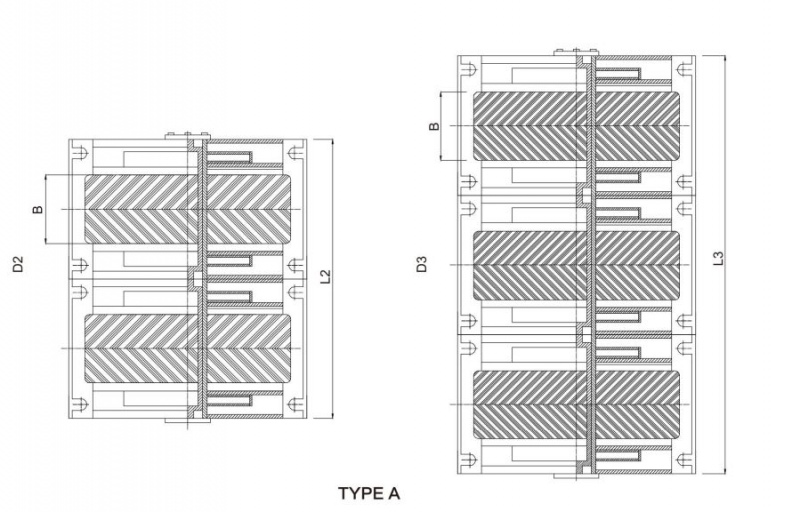

Roller Rubber Fender Specification
D1 |
D2
|
D3
|
||||||
A | B | C | D |
H
|
L1
|
L2
|
L3
|
|
600×200 | 600 | 200 | 695 | 320 | 620 | 420 | 770 | 1120 |
750×250 | 750 | 250 | 870 | 400 | 775 | 510 | 935 | 1360 |
900×300 | 900 | 300 | 1040 | 480 | 930 | 610 | 1120 | 1630 |
1200×400 | 1200 | 400 | 1380 | 640 | 1240 | 820 | 1500 | 2180 |
1500×500 | 1500 | 500 | 1740 | 800 | 1550 | 1010 | 1850 | 2690 |
1800×600 | 1800 | 600 | 2080 | 960 | 1860 | 1210 | 2215 | 3220 |
2100×700 | 2100 | 700 | 2440 | 1155 | 2205 | 1410 | 2590 | 3770 |
2400×800 | 2400 | 800 | 2770 | 1280 |
2480
|
1610
|
2950
|
4290
|
unit: mm
