High Quality Marine Supplies Wing Type Rubber Fender For Dock
High Quality Marine Supplies Wing Type Rubber Fender For Dock
| Categories | Wing(GD) Type Rubber Fender |
|---|---|
| Album | View larger image |
| Brand | Jerryborg Marine，safe docking，safe mooring |
| Model | JRBMA-01 |
| place of origin | Qingdao,China |
| brand name | Jerryborg |
| product name | Wing(GD) type rubber fender |
| color | black |
| material | natural rubber |
| usage | ships and dock protection |
| certificate | ISO9001-2008 BV SGS CCS |
| length | customized |
| height | customized |
| Update Time | 2021-01-18 |
Detail Information
High Quality Marine Supplies Wing Type Rubber Fender For Dock
Wing Type Rubber Fender
GD type rubber fender (Wing D rubber fender) is usually regarded as an alternative to other profiles as belting for tugs and workboats. The wings are forced into a jacking angle during installation and joints of adjacent sections are blocked to achieve a smooth and continuous contact surface. With the wings sit tightly within the angles, this type of arrangement is resistant to transverse and longitudinal shear-ideal for tugs.
1. Jerryborg-wing type rubber fender is a new type fender on the basis of D type fender, wider bottom with embedded steel plate, double row fixing bolts, longer working life than type D fender.
2. Higher reaction force and energy absorption than type D fender
3. Easy to install and maintain
4. Better anchoring capacity

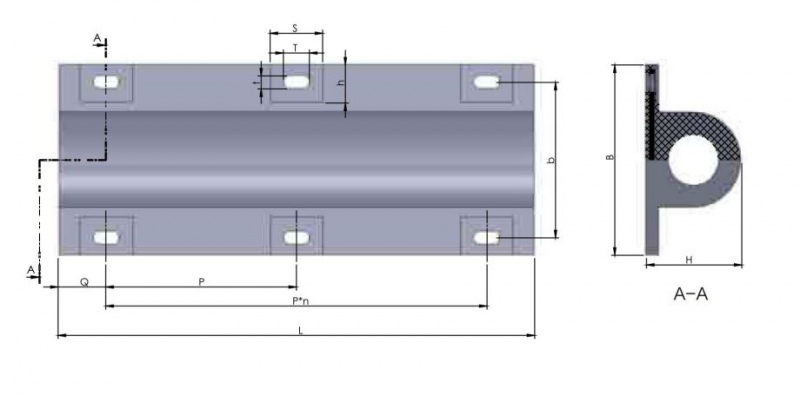

Wing Type Rubber Fender Specification
sizes | ||||||||||||
H | B | b | L | Q | p | S | h | T | t | n | ||
GD 300×540×1000 | 300 | 540 | 430 | 1000 | 150 | 700 | 165 | 120 | 82 | 41 | 2 | |
GD 300×540×1500 | 300 | 540 | 430 | 1500 | 150 | 600 | 165 | 120 | 82 | 41 | 3 | |
|
GD 300×540×2000
|
300 | 540 | 430 | 2000 | 145 | 570 | 165 | 120 |
82
|
41
|
4
|
|
GD 300×540×2500 | 300 | 540 | 430 | 2500 | 150 | 550 | 165 | 120 | 82 | 41 | 5 | |
GD 300×540×3000 | 300 | 540 | 430 | 3000 | 150 | 540 | 165 | 120 | 82 | 41 | 6 | |
GD 300×600×1000 | 300 | 600 | 490 | 1000 | 150 | 700 | 165 | 120 | 82 | 41 | 2 | |
GD 300×600×1500 | 300 | 600 | 490 | 1500 | 150 | 600 | 165 | 120 | 82 | 41 | 3 | |
|
GD 300×600×2000
|
300 | 600 | 490 | 2000 | 145 | 570 | 165 | 120 |
82
|
41
|
4
|
|
|
GD 300×600×2500
|
300 | 600 | 490 | 2500 | 150 | 550 | 165 | 120 |
82
|
41
|
5
|
|
|
GD 300×600×3000
|
300 | 600 | 490 | 3000 | 150 | 540 | 165 | 120 |
82
|
41
|
6
|
|
unit: mm
Who is Jerryborg Marine?
The Jerryborg Marine is a leading international marine products manufacturer & distributor with15+ years of rich experience in production of marine fender systems & mooring systems.
