Marine Boat Dock Fixed V Type Solid Port Super Arch Rubber Fender For Sale

Marine Boat Dock Fixed V Type Solid Port Super Arch Rubber Fender For Sale

Marine Boat Dock Fixed V Type Solid Port Super Arch Rubber Fender For Sale
Marine Boat Dock Fixed V Type Solid Port Super Arch Rubber Fender For SaleMarine Boat Dock Fixed V Type Solid Port Super Arch Rubber Fender For SaleMarine Boat Dock Fixed V Type Solid Port Super Arch Rubber Fender For Sale
CategoriesSuper Arch Rubber Fender
AlbumView larger image
BrandJerryborg Marine,safe docking,safe mooring
ModelJRBMA-01
materialnatual rubber
place of originQingdao, China
colorblack
brand nameJerryborg
usageprotect boat
sizecustomized
MOQ1 pcs
certificateBV/CCS/TUV/ISO/LR
Update Time2021-04-11
Detail Information
Marine Boat Dock Fixed V Type Solid Port Super Arch Rubber Fender For Sale

Super Arch Rubber Fender

Super arch rubber fender, also known as SA type super arch rubber fender, V type rubber fender, The top of fender is usually embedded steel mount and nut. By connecting the front panel, UHMW-PE face pad installed outside of front panel, it can lower the friction factor between fender and vessel to avoid the damage on vessel and extend the serve life of the fender. With the sample and durable design, super arch rubber fender performs stable and excellent and provide trouble-free service for berthing even under severe weather conditions.

Super arch rubber fender is made of high-quality natural rubber which is resistant to abrasion, corrosion, seawater, ageing,etc. Compared with traditional arch rubber fender, it has better stability and stronger attachment to the supporting structure. Besides that, the energy absorption has also been optimized, it's perfectly suitable for vessels with high allowable hull pressure and the places where mounting space is limited.

Super Arch Rubber Fender Features

Features


1. More reasonable structure with high durability


2. Higher energy absorption with lower reaction force than normal V type rubber fender


3. Flexible and convenient installation, wide selection of sizes and performances


4. Front panel with UHMW-PE face pad could be installed on the top of fender to reduce surface pressure  and friction factor with ship which keeps lower shear strength while vessel berthing.

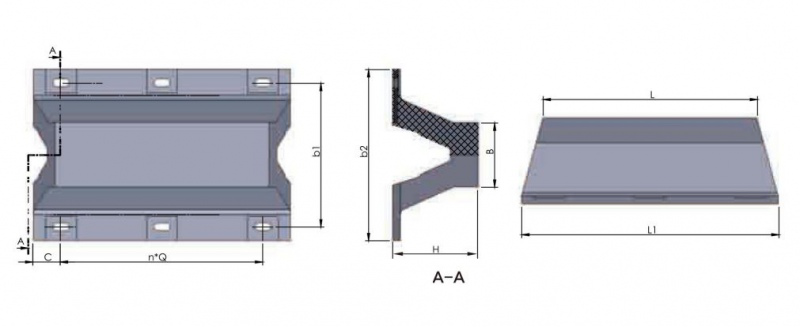

Super Arch Rubber Fender Structure



Super Arch Rubber Fender Specification

Spec.

H

L

LI

C

Q

n

B

bl

b2

BA200xl000

200

1000

1100

120

860

1

145

320

400

BA 200x1500

200

1500

1600

120

680

2

145

320

400

BA 200x2000

200

2000

2100

120

620

3

145

320

400

BA 200x2500

200

2500

2600

122.5

785

3

145

320

400

BA 200x3000

200

3000

3100

120

715

4

145

320

400

BA 200x3500

200

3500

3600

120

672

5

145

320

400

BA 250x1000

250

1000

1125

130

865

1

164

410

500

BA 250x1500

250

1500

1625

132.5

680

2

164

410

500

BA 250x2000

250

2000

2125

132.5

620

3

164

410

500

BA 250x2500

250

2500

2625

127.5

790

3

164

410

500

BA 250x3000

250

3000

3125

132.5

715

4

164

410

500

BA 250x3500

250

3500

3625

130

673

5

164

410

500

BA 300x1000

300

1000

1150

140

870

1

225

490

600

BA 300x1500

300

1500

1650

140

685

2

225

490

600

BA 300x2000

300

2000

2150

137.5

625

3

225

490

600

BA 300x2500

300

2500

2650

140

790

3

225

490

600

BA 300x3000

300

3000

3150

145

715

4

225

490

600

BA 300x3500

300

3500

3650

140

674

5

225

490

600

BA 400x1000

400

1000

1200

150

900

1

300

670

800

BA 400x1500

400

1500

1700

150

700

2

300

670

800

BA 400x2000

400

2000

2200

147.5

635

3

300

670

800

BA 400x2500

400

2500

2700

150

800

3

300

670

800

BA 400x3000

400

3000

3200

150

725

4

300

670

800

BA 400x3500

400

3500

3700

150

680

5

300

670

800

BA 500x1000

500

1000

1250

160

930

1

375

840

1000

BA 500x1500

500

1500

1750

160

715

2

375

840

1000

BA 500x2000

500

2000

2250

157.5

645

3

375

840

1000

BA 500x2500

500

2500

2750

160

810

3

375

840

1000

BA 500x3000

500

3000

3250

165

730

4

375

840

1000

BA 500x3500

500

3500

3750

160

686

5

375

840

1000

BA 600x1000

600

1000

1300

170

960

1

450

1010

1200

unit: mm
