Super Cone Rubber Fender UHWM PE Marine Fender Pad with High Performance

Super Cone Rubber Fender UHWM PE Marine Fender Pad with High Performance

Super Cone Rubber Fender UHWM PE Marine Fender Pad with High Performance
Super Cone Rubber Fender UHWM PE Marine Fender Pad with High PerformanceSuper Cone Rubber Fender UHWM PE Marine Fender Pad with High PerformanceSuper Cone Rubber Fender UHWM PE Marine Fender Pad with High Performance
CategoriesSuper Cone Rubber Fender
BrandJerryborg Marine,safe docking,safe mooring
ModelJRBMA-01
brand nameJerryborg
place of originQingdao, China
materialnatural rubber
MOQ1 pcs
colorblack
product nameSCN fender, super cone rubber fender
usageproduct vessel
certificationBV, CCS,LR
Update Time2021-09-25
Detail Information
Super Cone Rubber Fender UHWM PE Marine Fender Pad with High Performance

Super Cone Rubber Fender

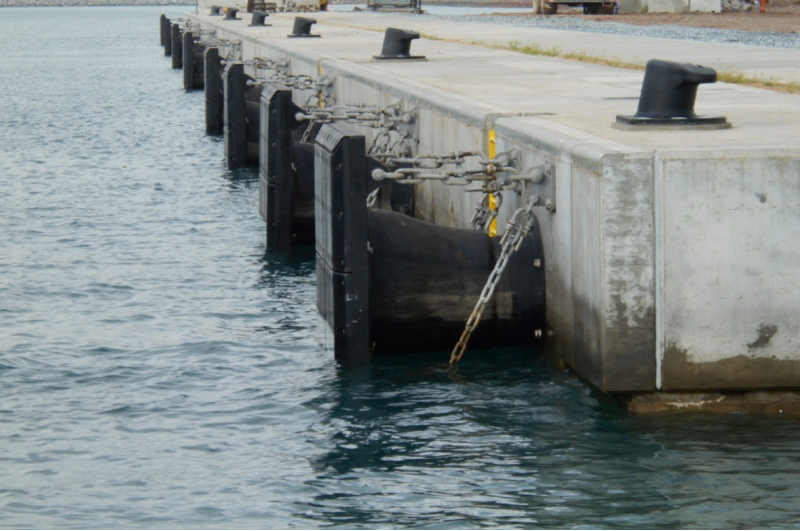

As the lasted generation of cell fenders, super cone rubber fender is regarded as one of the most efficient rubber fender types with optimal performance. Compared with the cell rubber fender before, super cone rubber fender is designed with more reasonable structure, due to its unique conical fender structure, it shows the excellent performance under severe berthing conditions with large berthing angles and heavy impacts.

Compared with equal specification fender, super cone rubber fender energy absorbs raise one more time and deflection can reach 70%. When the vessel angular berthing, the performance stay unchanged. Besides, the flange is fully embedded in the rubber mounting. A complete super cone rubber fender system is usually composed of closed box steel panel mounting with UHMW-PE plastic pads. The low friction UHMW-PE plastic pads can lower the shear loading between fender and vessel and fender frontal panel can lower the surface pressure of the vessel side board to extend the service life of the fender.

Super Cone Rubber Fender Features

1. More reasonable structure, 70%-72.5% deflection, double energy absorption than other same sizes fenders, long term service life with low cost of dock projects.

2. The performance is almost changeless during vessels’ angular berthing under 10º

3. Frontal panel can reduce the surface pressure to the ship, surface pressure could be controlled below 200KN/m², it’s suited to berthing large ship.

4. UHMW-PE pad is fixed with frontal panel to reduce the friction factor between ship and fender system, this can extend the service life of fender system through reducing the shear force.

5. Flexible and convenient installation.

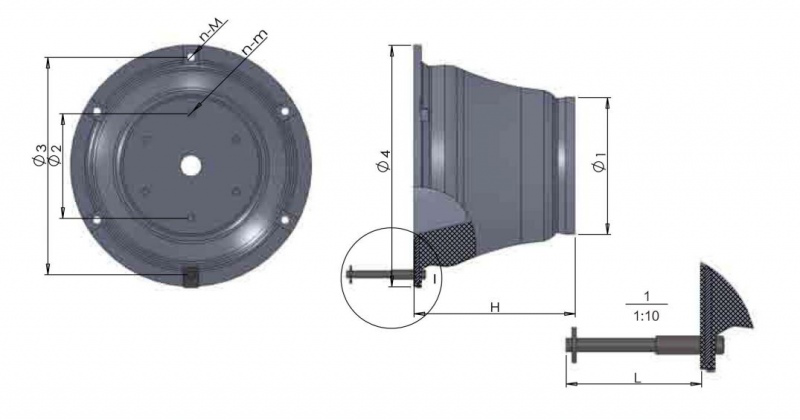

Super Cone Rubber Fender Structure




Super Cone Rubber Fender Specification

Spec.
H

Φ1

Φ2

Φ3

Φ4

n
m
M
Ref.Weight(kg)
500H
500
425
325
675
750
4
M24
30
140
600H
600
510
390
810
900
6
M24
30
232
700H
700
595
455
945
1050
6
M30
38
395
800H
800
680
520
1080
1200
6
M36
44
540
900H
900
765
585
1215
1350
6
M36
44
760
1000H
1000
850
650
1350
1500
6
M42
50
1015
1100H
1100
935
715
1485
1650
6
M42
50
1505
1150H
1150
998
750
1550
1725
6
M42
50
1600
1200H
1200
1020
780
1620
1800
8
M42
50
1960
1300H
1300
1105
845
1755
1950
8
M48
60
2400
1400H
1400
1190
930
1890
2100
8
M48
60
3060
1600H
1600
1360
1060
2160
2400
8
M48
60
4600
1800H
1800
1530
1190
2430
2700
10
M56
70
6600
unit: mm
