Marine Mooring Super Cell Rubber Fender (SC Type) with ISO17357 Certificate
Marine Mooring Super Cell Rubber Fender (SC Type) with ISO17357 Certificate
| Categories | Super Cell Rubber Fender |
|---|---|
| Album | View larger image |
| Brand | Jerryborg Marine，safe docking，safe mooring |
| Model | JRBMA-01 |
| place of origin | Qingdao, China |
| brand name | Jerryborg |
| material | natural rubber |
| usage | protect boat |
| color | standard color is black |
| size | customized size |
| certificate | CCS, BV, ABS, DNV, GL, LR,NK ,etc. |
| Update Time | 2021-04-11 |
Detail Information
Marine Mooring Super Cell Rubber Fender (SC Type) with ISO17357 Certificate
Super Cell Rubber Fender

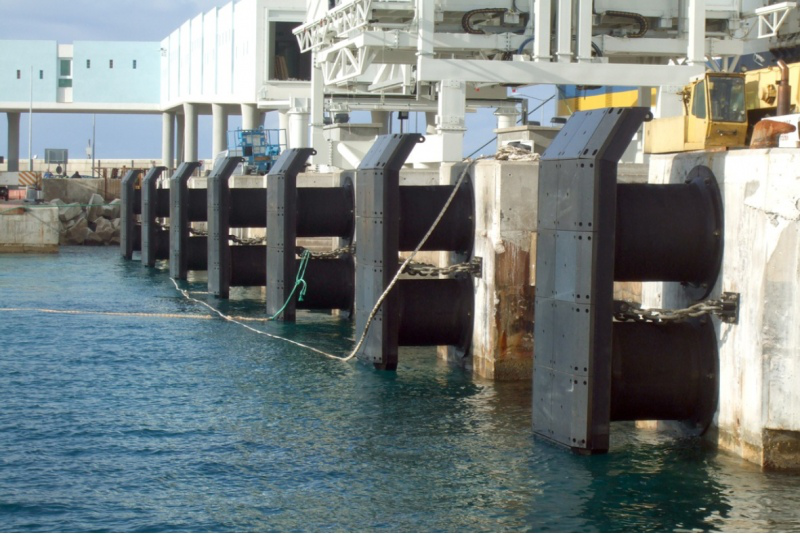

Super Cell Rubber Fender is one of the most reliable and commonly used fender in the world. The super cell rubber fender becomes an extremely stable fender type with the circular mounting base.
The front of the super cell rubber fender is always equipped with frontal frame, which is including the steel panel and the UHMW-PE Facing Pad. The face pressure on ship panel and the friction coefficient are greatly reduced.
Super Cell Rubber Fender Features
1. High capability of energy absorption, low reaction force
2. Durable with a long usage life
3. It has excellent multi-direction angular performance
4. Closed and opened front panels are both available

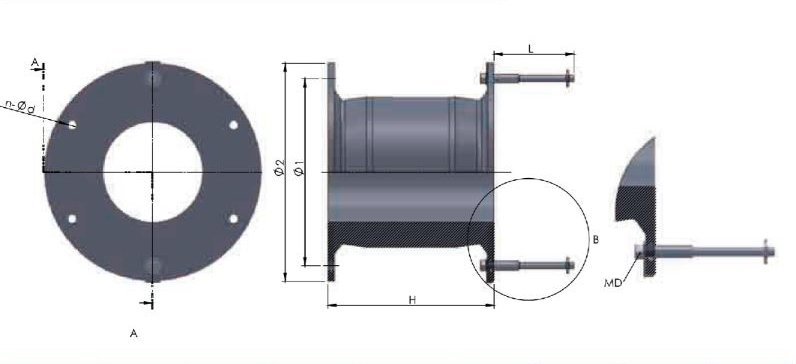

Super Cell Rubber Fender Specification
Spec. | H | Φ1 | Φ2 | n | Φd | MD | L | Ref.weight（kg） |
500H | 500 | 550 | 650 | 4 | 32 | 24 | 300 | 111 |
630H | 630 | 700 | 840 | 4 | 39 | 30 | 330 | 230 |
800H | 800 | 900 | 1050 | 6 | 40 | 32 | 360 | 412 |
1000H | 1000 | 1100 | 1300 | 6 | 47 | 39 | 430 | 825 |
1150H | 1150 | 1300 | 1500 | 6 | 50 | 42 | 500 | 1210 |
1250H | 1250 | 1450 | 1650 | 6 | 53 | 45 | 500 | 1500 |
1450H | 1450 | 1650 | 1850 | 6 | 61 | 52 | 570 | 2310 |
1600H | 1600 | 1800 | 2000 | 8 | 61 | 52 | 570 | 3030 |
1700H | 1700 | 1900 | 2100 | 8 |
66
|
56
|
620
|
3700
|
2000H | 2000 | 2000 | 2200 | 8 | 74 | 64 | 700 | 5260 |
2250H | 2250 | 2300 | 2550 | 10 |
74
|
64
|
700
|
7500
|
2500H | 2500 | 2700 | 2950 | 10 |
74
|
64
|
700
|
10750
|
3000H | 3000 | 3150 | 3350 | 12 |
90
|
76
|
800
|
18500
|
unit: mm
Who is Jerryborg Marine?
The Jerryborg Marine is a leading international marine products manufacturer & distributor with15+ years of rich experience in production of marine fender systems & mooring systems.
