high quality inflation customized foam filled fender

high quality inflation customized foam filled fender
high quality inflation customized foam filled fender
high quality inflation customized foam filled fenderhigh quality inflation customized foam filled fenderhigh quality inflation customized foam filled fenderhigh quality inflation customized foam filled fenderhigh quality inflation customized foam filled fender
CategoriesDock Shield Fender
AlbumView larger image
BrandJerryborg Marine,safe docking,safe mooring
ModelJRBFF5
namehigh quality inflation customized foam filled fend
Colorwhite/grey/blue/yellow/red......
materialclosed cell EVA foam
diamater0.2-4 meters
length0.5-6 meters
coatingpolyurethane/polyurea
certificateCCS, ABS, LRS, BV, GL, DNV, NK
applicationSTS, STD
brandJerryborg Dock Shield
packingnude
FOB portqingdao
Terms of PaymentL/C, D/A, D/P, Western Union
Update Time2020-01-24
Detail Information
high quality inflation customized foam filled fender

What is Foam Filled Fender?

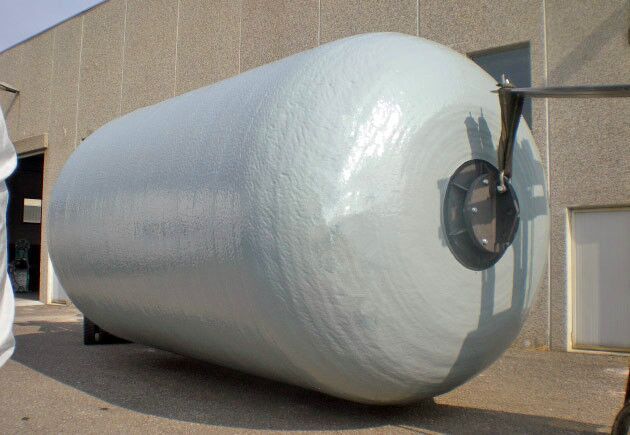

Foam Filled Fender is a floating type compressive fender that is highly utility and suitable for a wide range of applications. It is made of an outer Polyurea (SPUA) protective layer, a reinforced rubber nylon cord fabric, as well as an internal space that is filled with 100% closed cell foam as a medium to absorb impact. Foam fenders outer layer has an extremely low frictional resistance and is highly resistant to wear due to its proven strength. Impact force is efficiently absorbed by the close cell foam fender, reducing the resultant force acted upon the wharf/vessel at the point of contact. Jerryborg Foam Fender can be used for tugs, workboats, pilot boats and is suitable for open sea terminals, gravity ports, especially for large tidal wave docks. Foam fender is also a viable option for Ship-to-Ship (STS) operations.

Features:

1. 100% closed cell EVA foam

Each cell of EVA foam is separated, so water cannot migrate into the foam, which ensures a high amount of buoyancy, even in case of damage to the outer polyurea (SPUA) coating. Even after many years of active service, the foam core can be returned to the factory, re-skinned and made ready for a new lease of life. A wide range of foam densities are available, from 20Kg/m3 to 200kg/m3, to offer a high dissipation of Energy and a low Reaction Force.

2. Polyurea (SPUA) coating skin

Polyurea is a type of elastomer coating which is sprayed onto the EVA foam core, thereby improving performance of foam fender and giving the fender increased resistance against abrasion during operations. Thickness of Polyurea coating is customized as per customer demand, usually from 3mm to 100mm. Jerryborg’s wear and tear resistant Polyurea coating let our foam fender performs well in even the harshest environments.

   What is the advantage benetits of foam filled fenders

Proportional increase of energy and reaction

Extremely robust and ultraviolet-proof

No performance loss and unsinkable even if damaged

Smaller skin damages can easily be repaired on site

Low hull pressure and non-marking Polyurethane/polyurea(SPUA) skin

Good angular performance
