Nine Main Types of Pneumatic Rubber Fender

Nine Main Types of Pneumatic Rubber Fender
Update Time:2019-12-02

How many types of floating pneumatic fenders are available ?

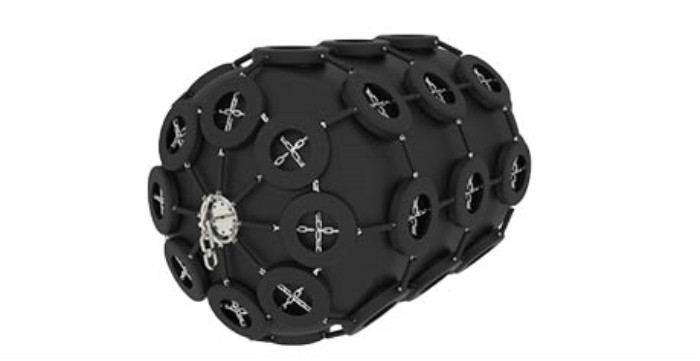

Type INet-type Pneumatic Fenders

Net-type fenders (Type Ⅰ) are covered with a chain net, wire net or fiber net for small size fenders. Usually these nets have used-tires together with rubber sleeves for additional protection, except fiber net which has only rubber sleeves. Chain nets last longer against corrosion, while wire nets are light and more easily repaired.

tire and chain net pneumatic fender

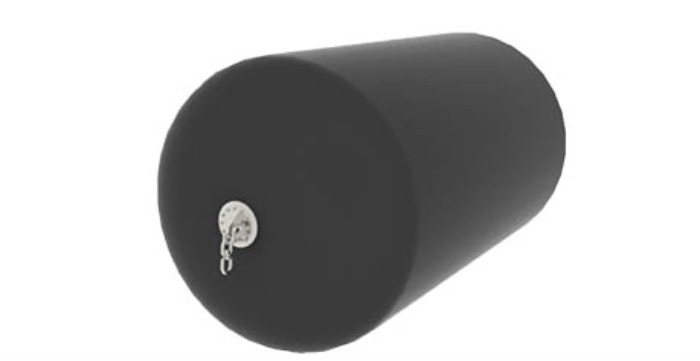

Type II—Sling Type Floating Rubber Fenders

Sling-type fenders (TypeⅡ) Φ500×1000L - Φ4500×9000L have an attachment eye on each end for lifting and installation. Handling of sling type fenders is easy due to their lightweight.

sling yokohama fender

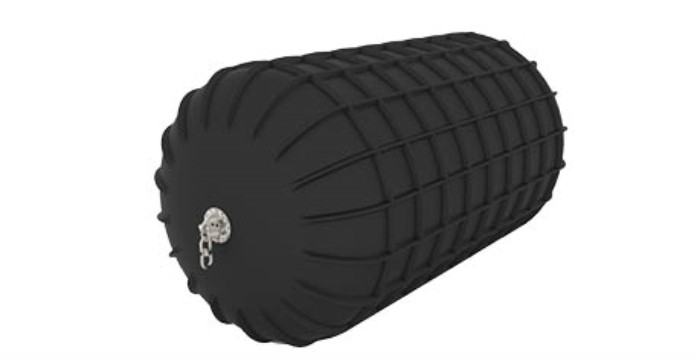

Type III—Ribbed Type Pneumatic Fenders

Ribbed type fenders have rubber humps on fender body for better protection purpose. The cushioning effect is better than sling type.

ribbed floating fender

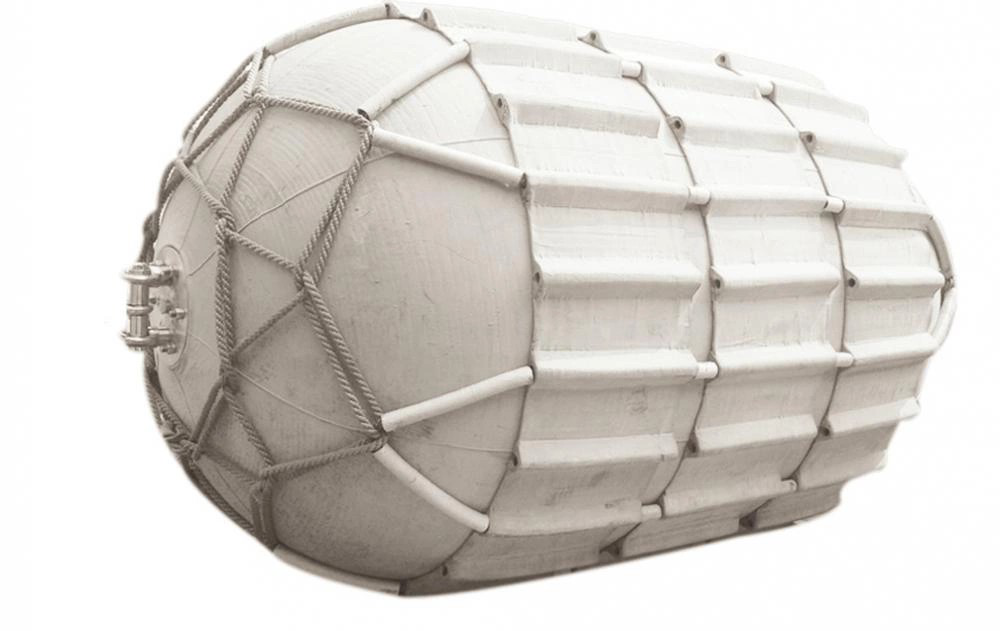

Type IV—Rubber Mat & Rope Type Pneumatic Fenders

Rubber Mat & Rope Type adopts rubber mat, ropes and rubber tube as net for protection and cushion. It is one kind of sling type pneumatic fenders.

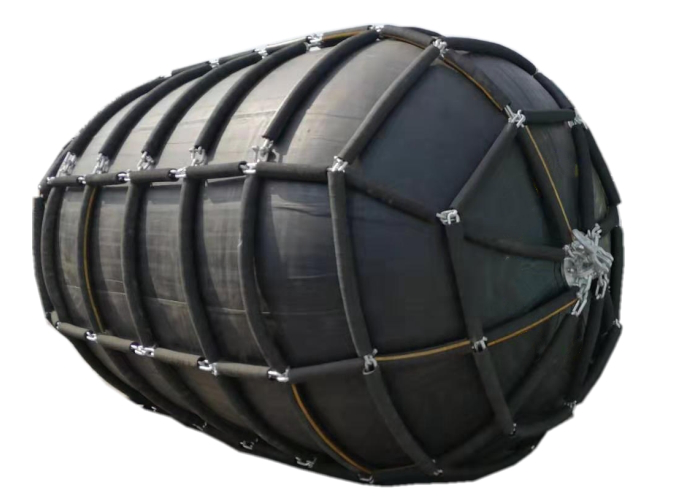

Type V—Rubber Sleeve Net Type Pneumatic Fenders



Rubber sleeve nets cover the chain net completely by strong rubber sleeves. The rubber sleeve is made of rubber reinforced with synthetic-tire-cord. The standard colors of the rubber sleeve are black and orange.

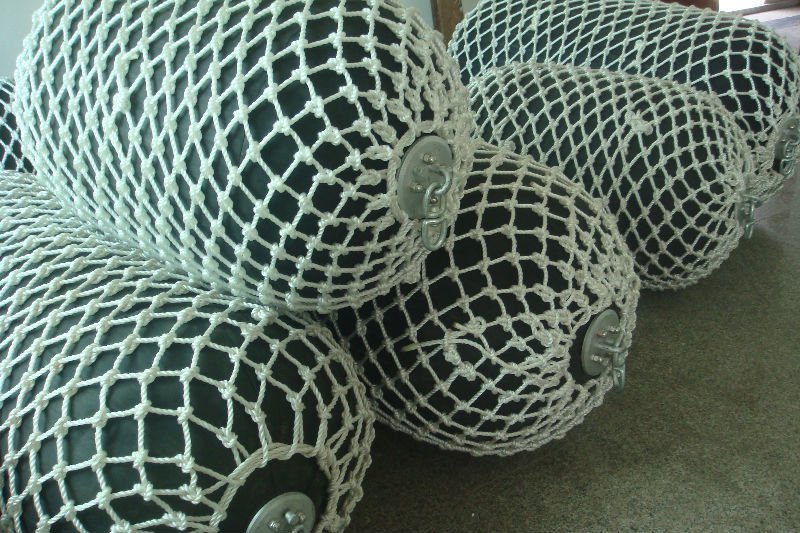

Type VI—Fiber Rope Type Floating Fenders



Fiber rope nets cover the fender body completely by strong marine ropes. The rope is made of reinforced fiber material. The colors of the fiber rope are various.

Fiber Rope Type Floating Fenders

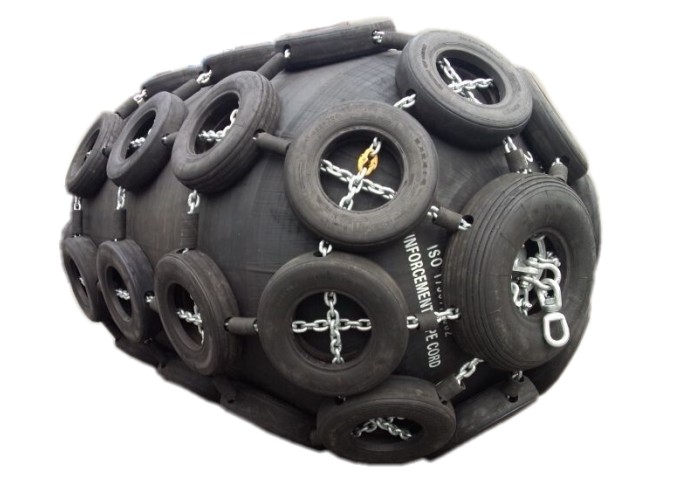

Type VII—Aircraft Tire Chain Net



Aircraft tire chain nets use air craft tires, instead of automobile tires, to keep larger stand-off distance and enough protection for the fender body.

Aircraft Tire Chain Net fender

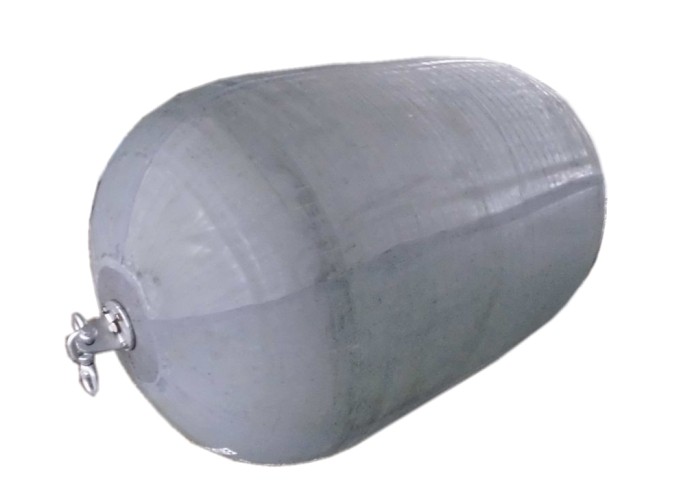

Type VIII—Grey Rubber, White Rubber Floating Fenders



Grey/White rubber is a specially formulated rubber with color compound added. Creamy white color can be requested instead of grey color as an alternative.

Grey Rubber Floating Fenders

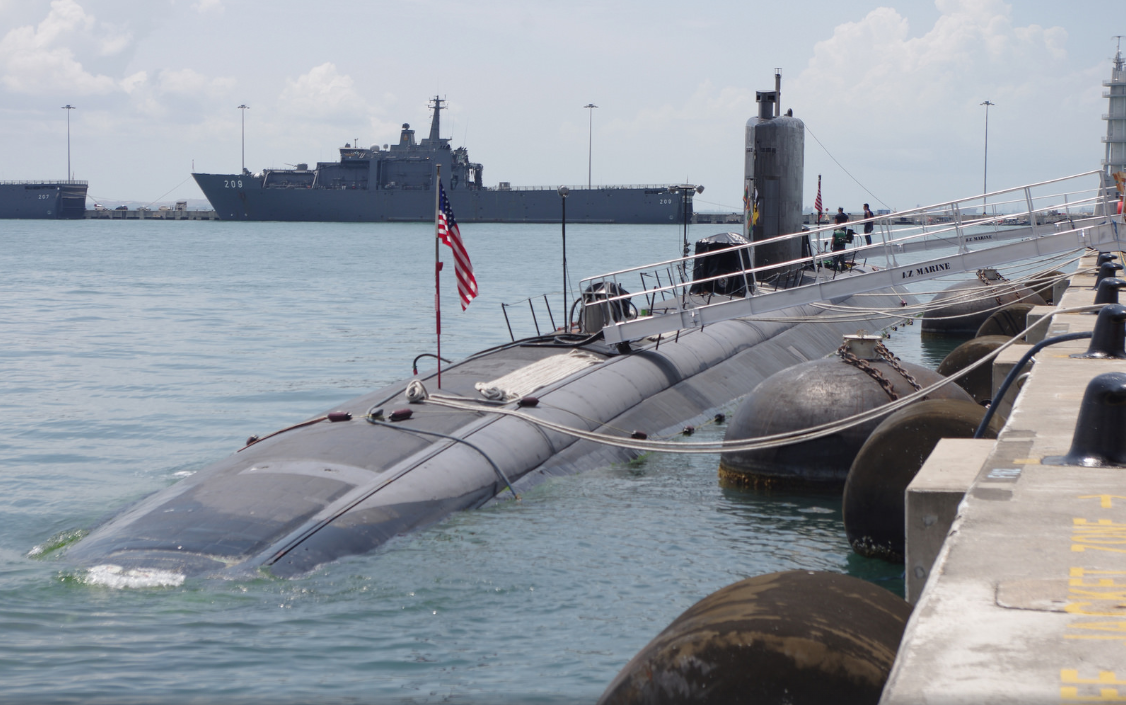

Type IX Vertical Hydro-pneumatic Fender



Vertical Hydro-pneumatic Pneumatic Rubber Fenders are specially designed pneumatic fenders that can be water-ballasted and installed vertically.


They are popular with vessels whose berthing point is below the water line such as catamaran ships, semi-submersibles platforms or other submersibles.

Hydropneumatic Fender
